⚙ TECHNICAL SPECIFICATIONS
Feature    Value / Description
Brand    QSR ENERGY

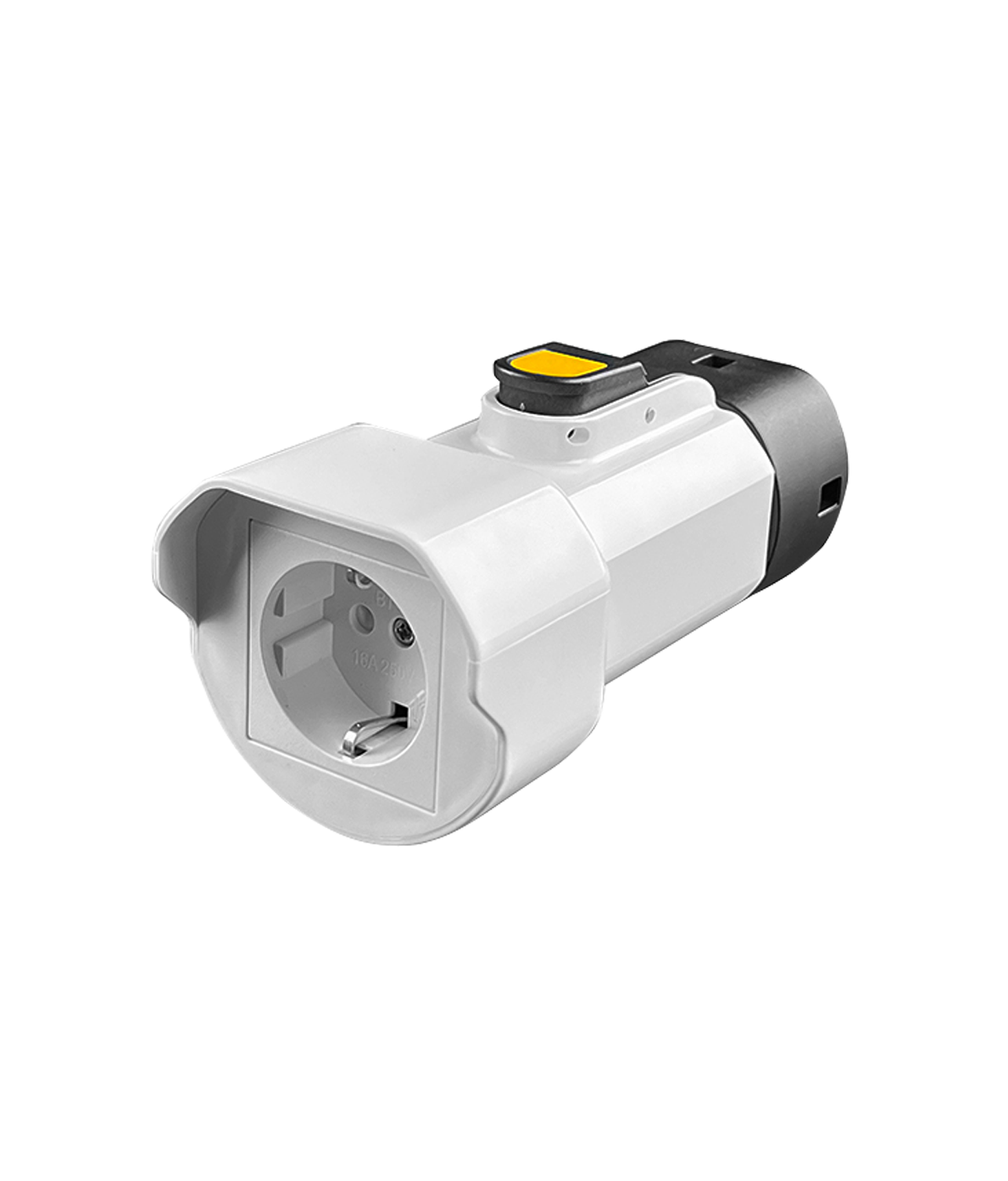

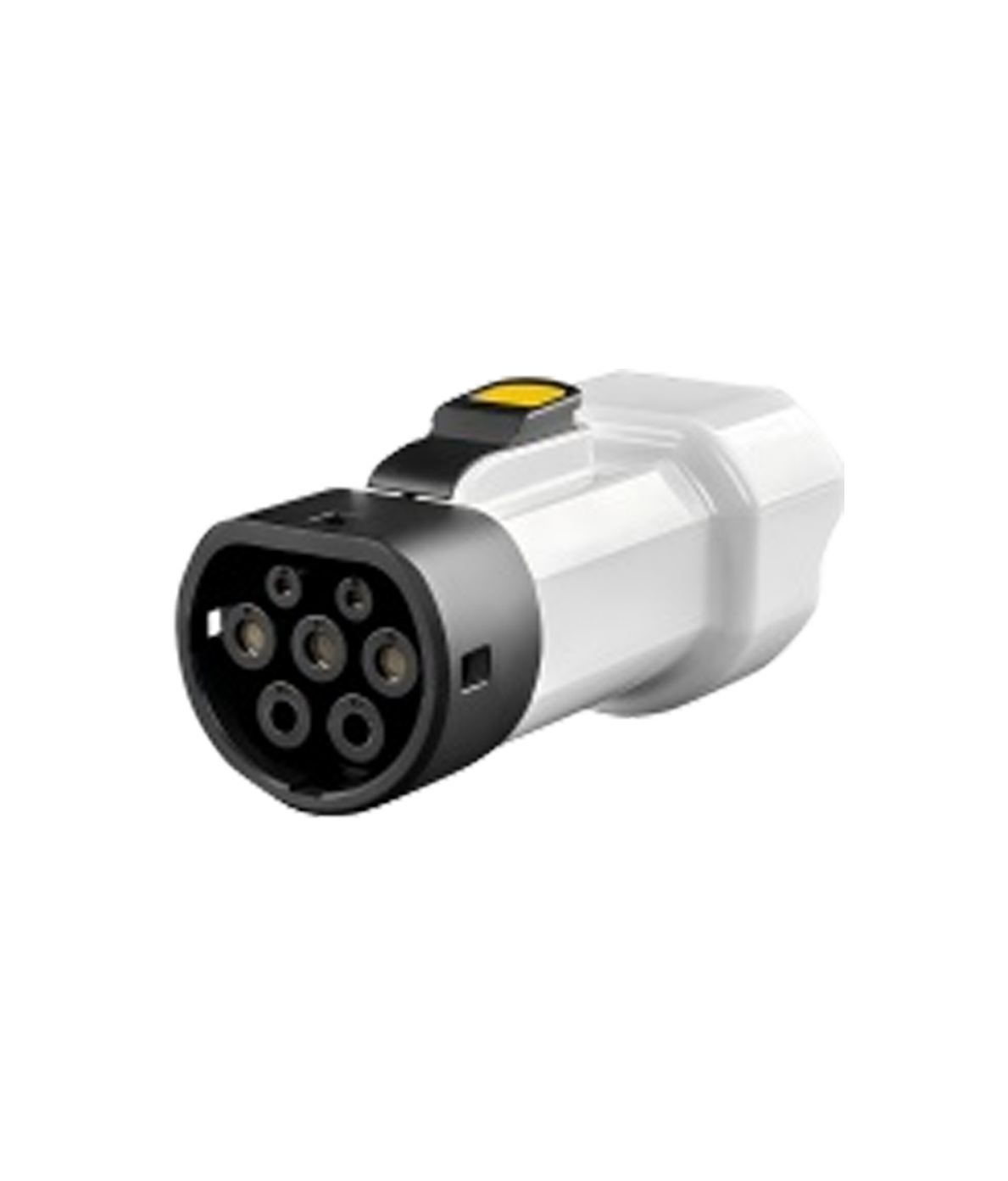

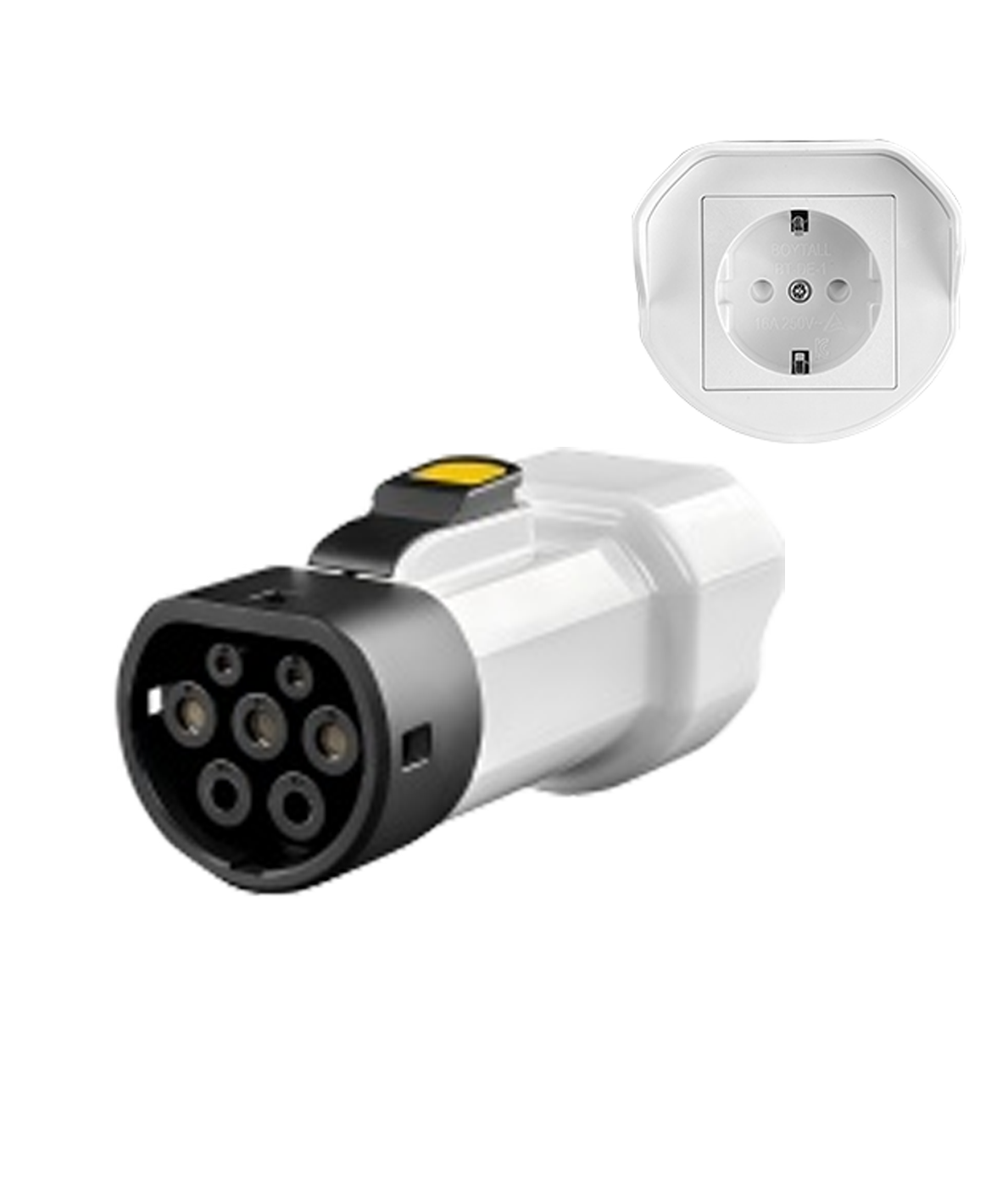

Adapter Type    Type 2 Female (EV Socket) →  Male Plug
Nominal Voltage    110V / 220V AC
Nominal Power    3.0 kW
Nominal Current    16A
IP Protection Class    IP54 (dust and splash water protection)
Withstand Voltage    2000V
Insulation Resistance    >1000 MΩ (DC 1000V)
Contact Resistance    ≤ 0.5 mΩ
Terminal Temperature Rise    < 50K
Weight    0.33 kg
Compliance    Complies with CE, , IEC 62196 standards
V2L (Vehicle to Device Energy Transfer)    Yes, supports (Under certain conditions)
✅ ADVANTAGES & USAGE FEATURES

Compact and Lightweight: Its small design makes it easy to carry and use in tight spaces.

High Compatibility: Works with many vehicles equipped with a Type 2 EV socket (especially European and Far Eastern models).

Non-Charging Power Transfer (V2L): You can power your external electrical devices in compatible vehicles.

Protection Level IP54: Protected against rain splashes and dust ingress.

Thermal Protection: Ensures safe use by keeping the terminal temperature below 50K.

⚠ CONDITIONS OF USE & LIMITATIONS

The V2L function will not function:

If the vehicle battery is below 20%

If the total power demand of connected devices exceeds 3kW

Consumption must be checked before operating high-power devices (heater, water heater, air conditioner, etc.) via the adapter.

The product is only suitable for use in vehicles that support V2L. Not all EVs support this feature.

📦 INCLUDED IN THE BOX

1 Type 2 to QSR V2L Adapter

Protective Cover

User Manual
